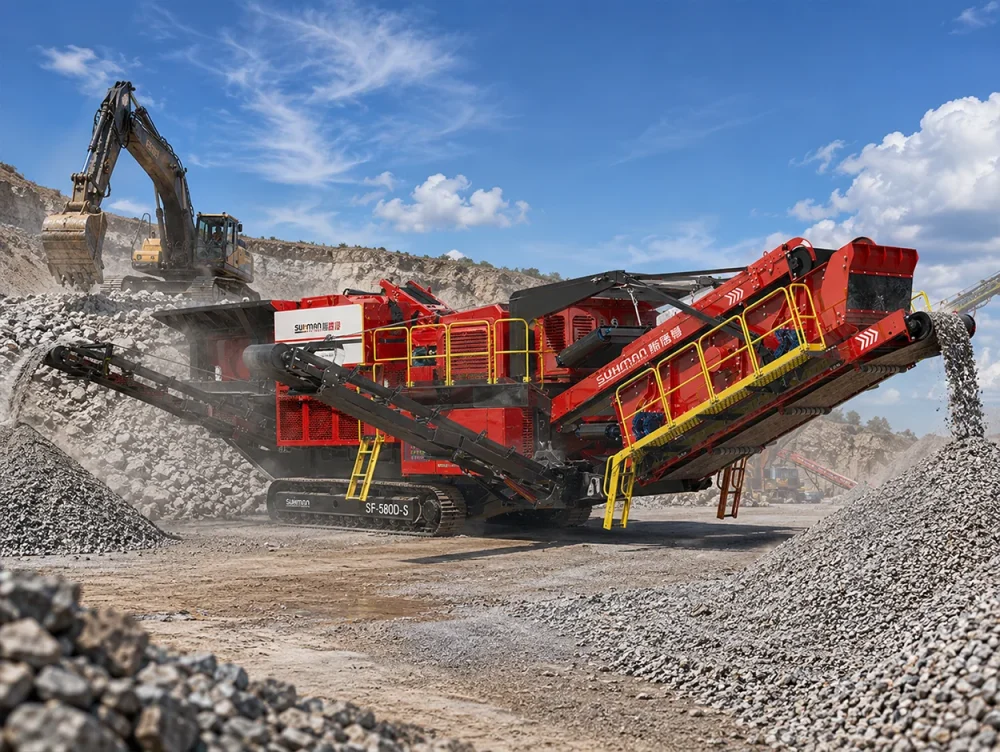

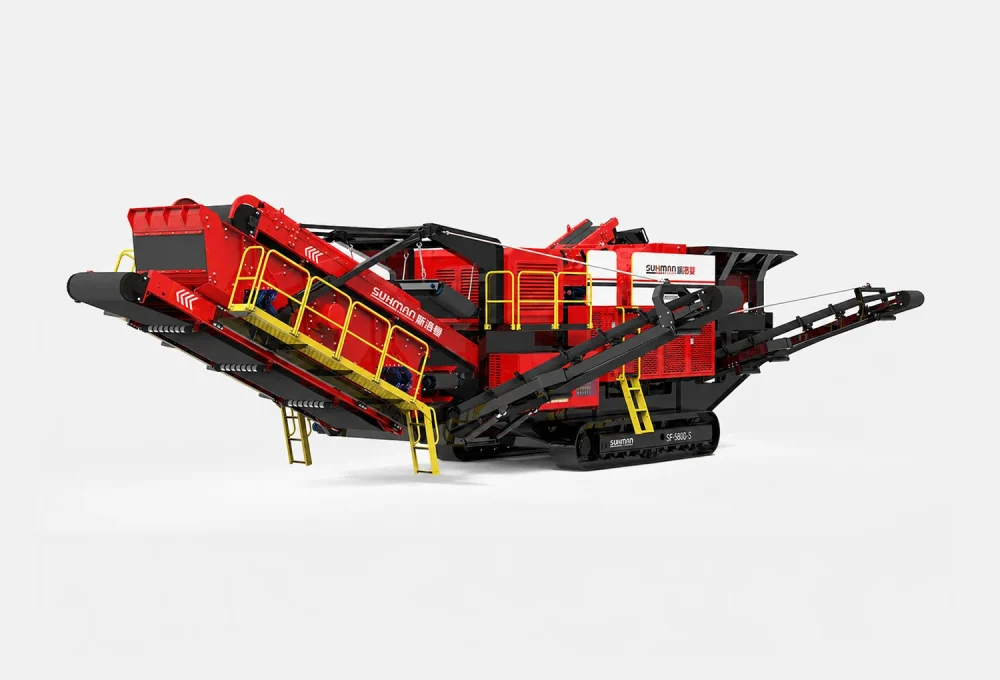

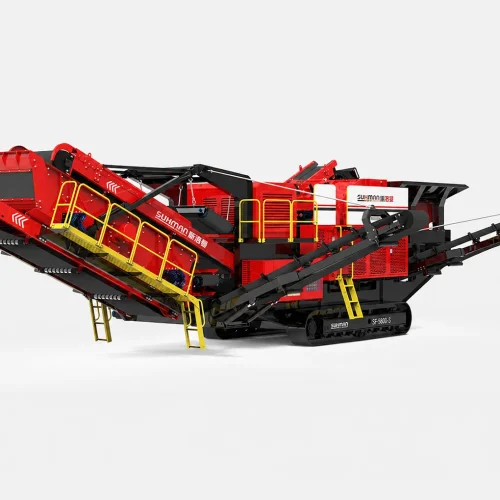

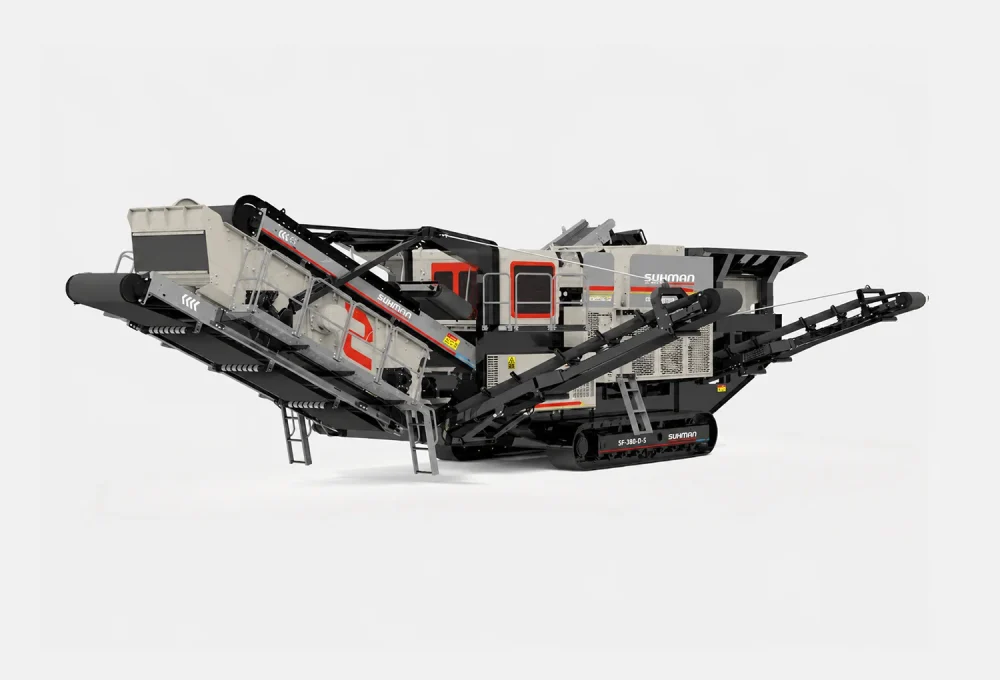

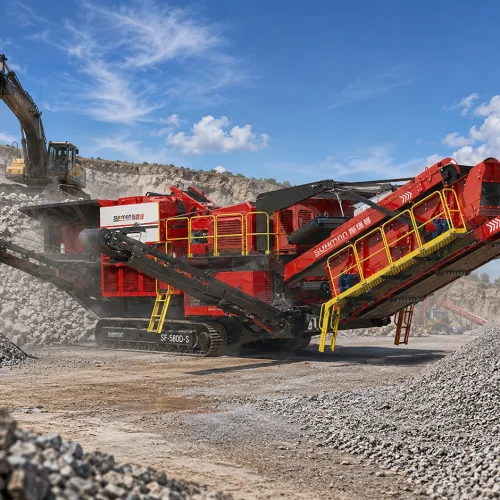

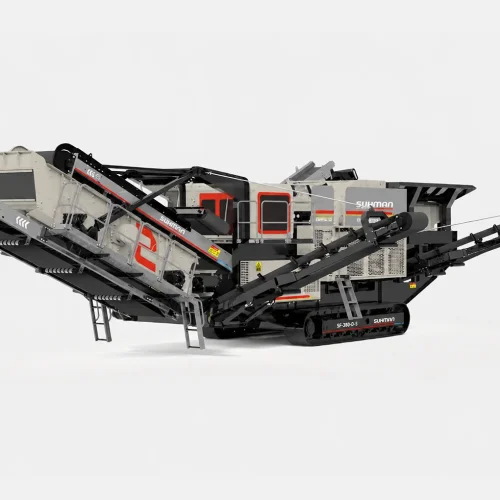

The SF-580D-S is a tracked mobile crushing and screening plant that combines a rotary crusher, a double-deck vibrating screen and an oversize return system. The plant is designed for processing construction waste and natural stone, and for producing commercial crushed stone directly on site. The plant has a capacity of 150–350 tonnes per hour, and the maximum size of the feed material exceeds 700 mm.
Every detail has been designed to
improving efficiency,
maximum wear resistance
and a reduction in operating costs.
Multi-point spraying reduces dust levels, ensuring compliance with environmental standards at construction sites.
It automatically removes metal debris, preventing damage to the crushing unit.
Real-time parameter monitoring and automatic overload protection for safe, uninterrupted operation.
A heavy-duty conveyor belt with adjustable height for unloading large volumes of raw materials.
The multifunctional wireless remote control provides secure, one-touch control of the equipment.
High towing capacity, smooth handling and excellent off-road capability on any challenging terrain.
The SF-580D-S is a tracked mobile crushing and screening plant that combines a rotary crusher, a double-deck vibrating screen and an oversize return system. The plant is designed for processing construction waste and natural stone, and for producing commercial crushed stone directly on site. The plant has a capacity of 150–350 tonnes per hour, and the maximum size of the feed material exceeds 700 mm.
The main advantage of the SF-580D-S is that it combines crushing, screening and material recirculation in a single machine. After primary crushing, the material is fed to the built-in double-deck screen, where it is separated into the required fractions. Large particles are automatically returned to the rotary crusher for reprocessing. This process helps to stabilise the particle size distribution, reduce the need for additional equipment and improve the overall efficiency of the production line.
The plant is equipped with a Model 1315 rotary crusher with a feed opening of 1540×1100 mm and a power rating of 315 kW. The adjustable discharge gap range of 0–180 mm allows the equipment to be adapted to different requirements for the final product. Rotary technology ensures efficient crushing, a good cuboid shape of the material and high throughput when processing limestone, construction concrete, asphalt and other suitable materials.
The built-in screen, measuring 4600×1540 mm, has two screening decks and allows several grades of finished material to be produced simultaneously. Separate conveyors ensure uniform discharge of the fractions, whilst a return conveyor directs oversized material back into the crushing chamber. This configuration is suitable for the production of crushed stone, concrete aggregates, road-building materials and recycled construction materials.
The SF-580D-S mobile rotary crusher can be used in quarries, for building demolition, road reconstruction, bridge dismantling and the processing of reinforced concrete structures. The unit enables material to be processed directly on site, reducing transport and storage costs. It is also suitable for temporary worksites and remote projects where rapid commissioning and minimal site preparation are essential.
The robust tracked chassis ensures stability and manoeuvrability on uneven terrain. The integrated design reduces the amount of installation work required and allows the unit to be moved more quickly between work areas. The machine’s transport dimensions are 18,650 × 3,750 × 3,900 mm, whilst its working dimensions are 18,650 × 8,000 × 4,700 mm. The total weight of the equipment is approximately 59.5 tonnes.
The SF-580D-S can be powered by an external power supply or a diesel generator. The available diesel-electric configuration helps you select the optimal operating mode, taking into account site conditions, fuel costs and the availability of the mains electricity supply. The hydraulic control system simplifies starting, stopping, adjusting and maintaining the equipment.
The preliminary separation of fine particles, the closed-circuit crushing process and integrated screening help to reduce the excessive load on the crushing chamber and minimise wear on moving parts. A magnetic separator can remove metallic inclusions from the construction material being processed. Additional dust suppression and remote control systems enhance safety, ease of operation and compliance with environmental requirements.
The SF-580D-S is ideal for businesses requiring a high-performance mobile crushing and screening plant with a compact process layout. The combination of a rotary crusher, a two-deck screen, a return conveyor and a tracked chassis enables the production of several material fractions at a single site, speeds up the processing of raw materials and reduces dependence on a stationary crushing line.
| Colour | beige, red |
|---|---|
| Maximum throughput (t/h) | 350 |
| Maximum feed particle size (mm) | 600 |
| Inlet (mm) | 1540×1100 |
